Infrared Microscopy

Infrared Microscopy

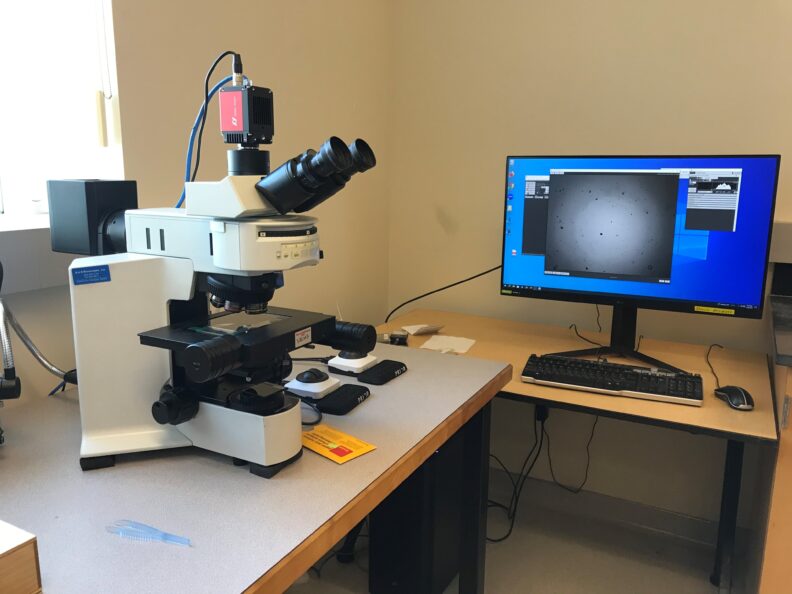

For volumetric imaging microscopy IMR has an Olympus BX51-TRF microscope capable of mapping from visible to NIR wavelengths using reflective or transmissive illumination. The microscope is commonly used for mapping CdTe inclusions with IR filtered transmitted light but the system can be configured for a wide variety of applications.

System Specifications

Click to expand

Illumination: filtered reflective and transmitted light using halogen lamp source.
Objectives: 5X, 10X-IR, 20X-IR, 50X, 100X
Stage: Prior Proscan III X-Y-Z controller with H101A scan stage(114mm x 75mm range of travel)
Camera: 1.3MP Goldeye G-130 VSWIR 400-1700nm
Image Acquisition: Microscope-Manager V2.0
Data Analysis: Fiji(ImageJ)
